CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227

FOB Reference Price:Get Latest Price
$1.00 - $6.00 / Meter | 500 Meter/Meters coated wire (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong coated wire
Model Number:
coated wire, coated wire
Insulation Material:
PVC
Type:
300/500V, 450/750V
Application:
CONSTRUCTION, house
Conductor Material:
Copper
voltage:
300/500V, 450/750V
Standard:
BS IEC ASTM DIN
Conductor Type:
copper
Sample:
free
Stock:
have stock
Brand:
huadong
Supply Ability
Supply Ability:
850 Kilometer/Kilometers per Month coated wire
Packaging & Delivery
Packaging Details
CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227 be packged in Wooden drums or as customers' requirements
Port
Qingddao coated wire
Lead Time :
Within 2 weeks after confirming the order coated wire

Product Description

Item name: CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227

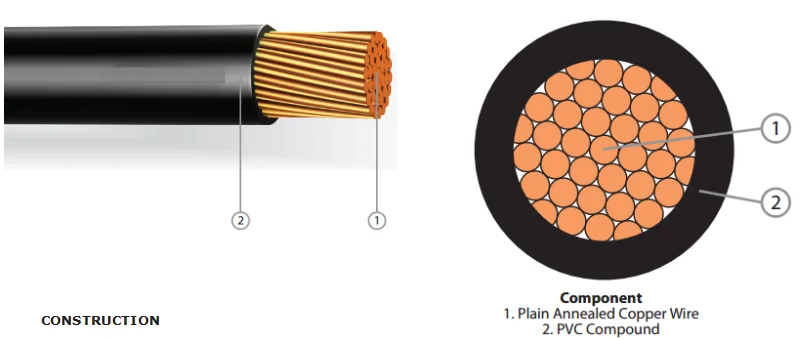

CONSTRUCTION
Conductor: Plain Annealed Copper, Class 2
Stranded Circular or Compacted
Insulation: Polyvinyl Chloride (PVC)
Compound Type C
Insulation Colour: Black, Green/Yellow, Red, Yellow,
Blue, White, Brown, Grey or Others



ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 450/750V

Operating Temperature: -15ºC to 70ºC

Final Short Circuit Temperature: 160ºC for cable ≤ 300mm2

140ºC for cable >300mm2

Test Voltage: 1.5kV for 5 minutes



REFERENCE STANDARDS
Design Specification: SS358, BS EN50525-2-31, IEC60227
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-1, BS EN60332-1
INSTALLATION REFERENCE
Min. Bending Radius (mm): 6 x cable overall diameter
Max. Pulling Tension (N/mm2): 50

Size

Unit

1*50mm2

1*35mm2

1*25mm2

1*10mm2

Type of Cable



Grounding Power cable

Rate Voltage



450/750V

Conductor

-

-

-Material

-

Annealed Copper Wire IEC 60228 cl.2

-Conductor size

mm2

50

35

25

10

-Structure

No./mm

7/3.0

5/2.98

5/2.52

5/1.60

-Sector height

mm

8.0

7.0

6.0

4.1

Insulation

-

-

-Material

-

Fire Resistance/UV Protection  PVC

-Insulated colors

-

 Black or as request

-Nominal thickness

mm

1.4

1.2

1.2

1.0

Finished Cable

-

-

-Approximate overall diameter

mm

10.8

9.4

8.4

6.1

-Approximate weight of completed cable

kg/km

475

352

262

113

Electrical Characteristics

-

-

-D.C resistance at 20°C  ≤

Ohm/Km

0.387

0.524

0.727

1.83

-Current rating

A

275

230

190

85

-Test voltage

-

1.5kV/5Min

Packaging & Shipping

CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.

Our Services

CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227 halogen free Hook-up Wire cable vsf h07v k 1x10 sqmm green yellow Cu PVC insulation Stranded Conductor cross linked insulation

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

Company Information

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,

research & development,and domestic& internationatrade.

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km .

CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227  Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

CU / PVC (single core) PVC Insulated, Non-Sheathed Cable, 450 / 750V, BS EN50525-2-31, IEC60227  Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical

Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation

of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

1.Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
