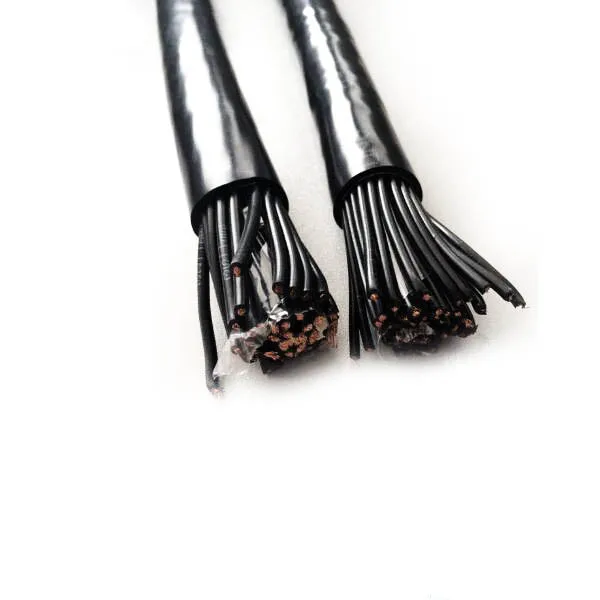

Flexible Control cable multi core signal cable 2.5mm

FOB Reference Price:Get Latest Price
$0.80 - $3.60 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong control cable.
Model Number:
Signal control cable
Application:
Instrumentation
Conductor Material:
Copper
Jacket:
PVC
Insulation Material:
PVC
item:
KVVR
core:
multi-core
conductor:
Strand copper
insulation:
PVC/XLPE
Sheath:
PVC
sample:
free
voltage:
600v
OEM/ODM:
Yes
Certificate:
ISO9001
Color:
Black or on your request
Supply Ability
Supply Ability:
850000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
be packed in wooden drum or on your request
Port
Qingdao/Tianjin/Shanghai
Lead Time :
3-15 days after received your deposit
.Product Description
 Item name: Flexible Control cable multi core signal cable 2.5mm .

Conductor material: Bare copper
Conductor construction: Class 1 solid, Class 2 stranded, Class 5 Flexible
Insulation: PVC YI2
Inner sheath: PVC
Screen: Cu-braiding
Screen coverage: 70 %
Sheathing material: PVC TM2
Colour of outer sheath: Gray RAL 7001
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
Maximum temperature at conductor: 70 ° C
Max. Operating temperature, fixed: -40 - +70 ° C
Temperature, moved/during installation: -5 - +70 ° C
Bending radius, fixed installation: 6 x DA
Bending radius, moved application: 20 x DA
Nominal voltage Uo: 300 V
Nominal voltage U: 500 V
Test voltage: 2 kV
Core identification: Gn-ye + numbers


Application: Flexible power, process control and instrumentation cable for industry and machinery environment with
Increased requirements to electromagnetic compatibility. The cable is resistant against most usual chemicals, oil and
Grease.



Parameter Data

Type

0.6 / 1kv control cable Name

Section Area(mm2)

No. of Core

0.6 / 1kv control cable Application Site

KVV

Copper Conductor,PVC Insulated and Sheathed Control Cable

0.75 1.0 1.5 2.5

2-16

Permanent installation indoors,in cable ditches or pipes

4 6

2-14

10

2-10

KVVP

Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded  Control Cable

0.75 1.0 1.5 2.5

2-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

2-14

10

2-10

KVVP2

Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable

0.75 1.0 1.5 2.5

4-10

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

7-61

10

4-10

KVV22

Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force

4 6

4-14

10

4-14

KVVR

Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable

0.5-2.5

4-61

Installation indoors where flexibility and movability are required

KVVRP

Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable

0.5 0.75 1.0

4-61

Installation indoors where flexibility shielding and movability are required

1.5 2.5

4-48

KYJV

Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

2-16

Permanent installation indoors,in cable ditches or pipes

4 6

2-14

10

2-10

KYJVP

Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

2-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

2-14

10

2-10

KYJV22

Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force

4 6

4-14

10

4-10

KYJVP2

Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable

0.75 1.0 1.5 2.5

7-61

Permanent installation indoors,in cable ditches or pipes where shielding is required

4 6

4-14

10

4-10

KYJVR

Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable

0.5-2.5

4-61

Installation indoors where flexibility and movability are required

KYJVRP

Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable

0.5 0.75 1.0

4-61

 Installation indoors where flexibility shielding and movability are required





Packaging & Shipping

Flexible Control cable multi core signal cable 2.5mm .

1,100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.

Our Services

Flexible Control cable multi core signal cable 2.5mm  .

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

Company Information



Flexible Control cable multi core signal cable 2.5mm .



Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.

Established year: 2005

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.

instrument cable Flexible  with  7mm of diameters cooper 1x0.75mm^2 Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

instrument cable Flexible  with  7mm of diameters cooper 1x0.75mm^2 Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical

Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation

of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
