3*50 ABC Cable compact aluminum conductor XLPE Insulation overhead cable

FOB Reference Price:Get Latest Price
$5.00 - $30.00 / Meter | 1000 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong Cable
Model Number:
Aerial Bundled Cable
Type:
Insulated
Application:
Overhead
Conductor Material:
Aluminum
Conductor Type:
Stranded
Insulation Material:
XLPE
Standard:
IEC 60502 ASTM B-230 B-231 B-232 B-399
Origin:
Henan China
Construction:
Al/XLPE
Cores:
1/2/3/4/5
Rated voltage:
0.6/1kv
Color:
Black or as your request
OEM/ODM:
Yes
Supply Ability
Supply Ability:
5000000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
be packed in wooden drums or steel-wooden drums or as your request.
Port
Shanghai /Tianjin /Qingdao
Lead Time :
Shipped in 15 days after payment

Product Description

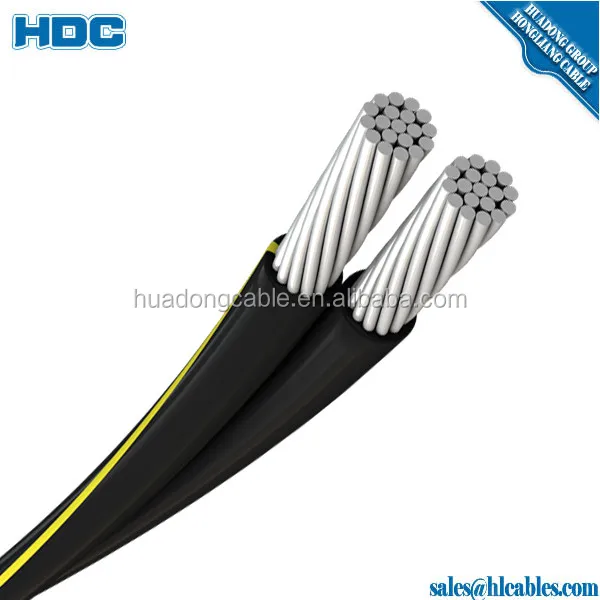

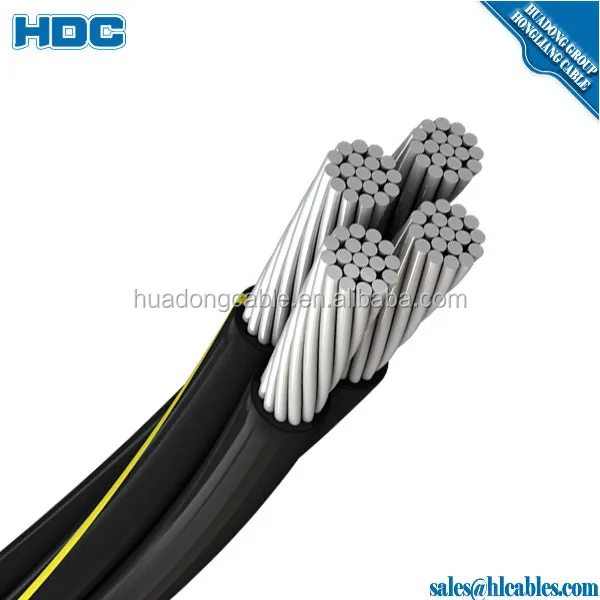

Item name:3*50 ABC Cable compact aluminum conductor XLPE Insulation overhead cable.

1,0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE
4. Cores: 1 C, 2C, 3C, 4C,5C
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard:  IEC 60502,NFC 33 209,ASTM
7. Max. Operating Temperature: 90 °C  .
8. Type: ABC Cable, Service Drop Cable.
9.Packing: Wooden Drum or according to the customer requirement.
10.Remark: The cable can be of flame retardant, fire resistance and other property.



 Used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethy insulated or 90°C for crosslinked.





Packaging & Shipping

3*50 ABC Cable compact aluminum conductor XLPE Insulation overhead cable .

1) Packing length:100 to 1,000m reeled in Wooden drum or according to customers' requirement.
2) Other packing requirement according to client's request.

Our Services

3*50 ABC Cable compact aluminum conductor XLPE Insulation overhead cable .



1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.


Company Information

3*50 ABC Cable compact aluminum conductor XLPE Insulation overhead cable.

Henan Huadong Cable is a joint stock enterprise integrated incable production, research & development, and domestic& international trade.

Established year: 1988.

Total asset: USD 32million.

Plant area: 30000m2

Number of staff: 380.

Engineer:20.

Laboratory Inspector: 18.

Production line: 18.

Testing machine:25.

Producing capacity each year: 320000 km.

 Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

Certification:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical

Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation

of Urban and Rural Power Grid Construction.

FAQ

1.what is our payment term ?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
