GOST R 52373-2005 Standard SIP 2 Cable 3x50+54.6mm2 Aluminum self supporting wire core XLPE insulation Insulated AAAC Neutral

FOB Reference Price:Get Latest Price
$0.10 - $23.00 / Meter | 200 Meter/Meters Romania ABC cable AAC 16MM2 25MM2 35MM2 70MM2 Duplex triplex qu (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
SIP 2 cable
Type:
Low Voltage
Application:
Overhead
Conductor Material:
Aluminum
Jacket:
XLPE
Insulation Material:
XLPE
Voltage:
0.6/1kV
section area:
16-240mm2
Conductor:
Aluminum
certificaiton:
GOST
Color:
Black or as Consumer request
Using:
Power Station
Cores:
Single, Two, Three,. Four, Five
Neutral conductor:
AAAC
delivery:
fast
package:
Iron-wooden drum
Supply Ability
Supply Ability:
200000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
GOST R 52373-2005 Standard SIP 2 Cable 3x50+54.6mm2 Aluminum self supporting wire core XLPE insulation Insulated AAAC Neutral
packed in Wooden drum, Iron wooden drum , Iron drum, or according to your requirement
Port
Qingdao/Tianjing/shanghai
Lead Time :
Shipped in 15 days after payment

GOST R 52373-2005 Standard SIP 2 Cable 3x50+54.6mm2 Aluminum self supporting wire core XLPE insulation Insulated AAAC Neutral

Product Description

Application
For branches from the overhead line to the input and for laying on walls of buildings and engineering structures in air of types II and III according to GOST 15150.



-1. Aluminum compacted core
-2. Isolation from silanol-crosslinked PE
-3. Aluminium alloy

Characteristics: SIP 2
1. Rated voltage - up to 0,6 / 1 kV.
2. Ambient temperature during cable operation from -50 ° C to + 50 ° C.
3. Relative air humidity up to 98% at a temperature of 35 ° C.
4. The minimum temperature of cable laying without preheating is 20 ° C.
5. Approximate long-term permissible operating temperature of conductors 70 ° C
6. Maximum permissible temperature of cable conductor heating in emergency mode 80 ° C
7. Maximum temperature of heating the cores at a short-circuit of 135 °C
8. The minimum permissible bending radius for laying 7.5 diameters of the wire
9. Service life is not less than 30 years.


Cable structure:
1. Stranded, sealed aluminum conductor. 16-240 mm2.
2. Insulation from light-stabilized silanol-cross-linked polyethylene.
3. Zero core - from aluminum alloy.

CONSTRUCTION

1. CONDUCTING CORE – Al, round core, for all cross-section the core is compacted multiwire, the quantity of wire in phase core. Outer diameter of conducting core and its electrical resistance shown in bellow table:



2. NEUTRAL MESSENGING CORE – form Al alloy, round core, stranded from round wires,
compacted. Nominal cross-sections, number of wires in the core, outer diameter of core, its burst
capacity and electrical resistance are specified in the bellow table:

Nominal cross-section of phase core, mm2

Number of wires in the core, units.

Outer diameter of conducting core, mm

Electrical resistance of 1 km of phase core to DC, ohm not more

Min.

Max.

 25

 7

 5,7

 6,1

 1,380

 35

 7

 6,7

 7,1

 0,986

 50

 7

 7,85

 8,35

 0,720

 54,6

 7

 9,2

 9,6

 0,630

 70

 7

 9,45

 9,95

 0,493

 95

 7

 11,1

 11,7

 0,363

 120

 19

 12,2

 12,9

 0,288

 150

 19

 13,9

 14,5

 0,236

 185

 19

 15,75

 16,15

 0,188

 240

 19

 17,75

 18,45

 0,145

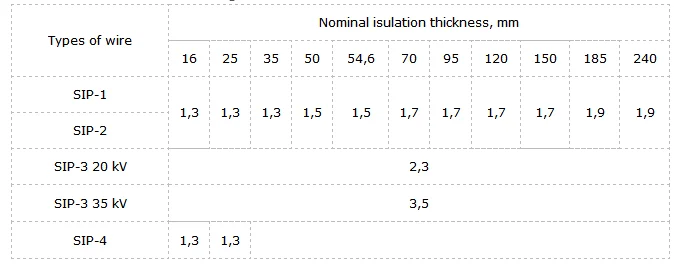

3. INSULATION – in SIP-1 the neutral core is not insulated. In other conductors the insulation made
from light-stabilized cross-linked PE. Insulated phase cores have the distinctive coloring. Insulation
thickness is shown in the following table:






Construction

Code*WordPhase conductorBare Neutral MessageNominal lay LengthWeight Per
1000 ft.(lbs.)
Allo wable Amp acitles
Size
(A WG)
StrandingInsul
Thick(Mils)
Size
(AWG)
StrandingRated
Strength
(lbs.)
inchesXLPPOLYXLPPOLY
AAC Neutral-messenger
Pekingese61456756310.3661618570
Collie67456756310.3664648570
Dachshund41454788110.36929211590
Spaniel47454788110.36969611590
Doberman274527135014.88147147150120
Malemute1/09601/07199014.88234234205160





b.Construction

Code*WordPhase conductorBare Neutral MessageNominal lay LengthWeight Per
1000 ft.(lbs.)
Allo wable Amp acitles
Size
(A WG)
StrandingInsul
Thick(Mils)
Size
(AWG)
StrandingRated
Strength
(lbs.)
inchesXLPPOLYXLPPOLY
AAC Neutral-messenger
Clydessdale41454788120.5819819810080
Pinto47454788120.5821121110080
Mustang274527135025.42318318135105
Criollo1/09601/07199025.42503503180140
Percheron2/011602/07251029.97619619205160
Hanovarian3/017603/019331035.18764764235185
Oldenburg4/018604/019402035.18945945275210
Lippizaner336.41980336.419614638.7915191519370280







Packaging & Shipping

Within 2 weeks after confirming the order BV Cable1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
