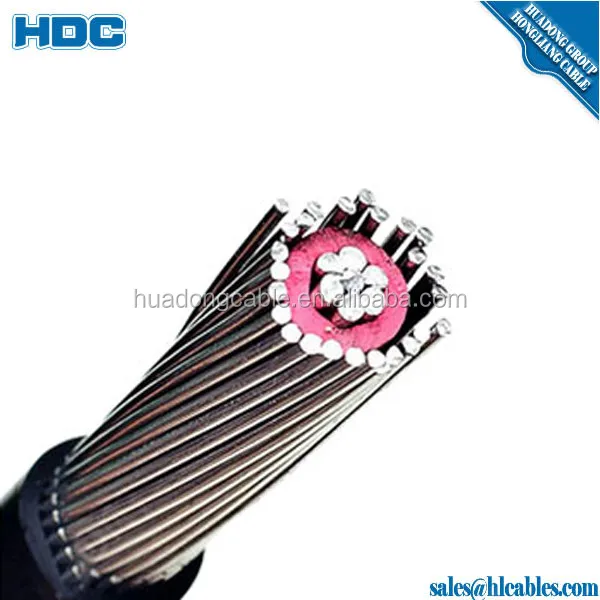

0.6/1kV 2 conductor concentric cable 8AWG 6AWG Aluminum conductor XLPE insulation PVC sheath factory price

FOB Reference Price:Get Latest Price
$0.10 - $25.00 / Meters | 200 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Hongliang
Model Number:
concentric cable
Insulation Material:
PVC
Type:
Low Voltage
Application:
Industrial
Conductor Material:
Aluminum
Jacket:
PVC
Place of origin:
Zhengzhou, China (Mainland)
Model number:
concentric cable
insulation materials:
XLPE
Jacket Material:
UV-PVC
voltage:
600V
application:
service entrance
CONDUCTOR:
COPPER OR ALUMINUM
Outer conductor size:
1awg 2awg 4awg 6awg 1/0awg 4/0awg
package:
Iro-wooden drum or as the customers` requirement
Supply Ability
Supply Ability:
1000000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
0.6/1kV 2 conductor concentric cable 8AWG 6AWG Aluminum conductor XLPE insulation PVC sheath factory price
packaging in Standard wooden drum,steel drum,others as your request.
Port
Qingdao/Tianjin/shanghai

 0.6/1kV  2 conductor concentric cable 8AWG 6AWG Aluminum conductor XLPE insulation PVC sheath factory price

Product Description



1. Appliction

These requiremnets cover Type USE and USE-2 (below-ground) and Type SE (above-ground) power cable for installation in accordance with Article 338 and other applicable parts of the National Electrical Code (NEC). These cables are for the service-entrance and other (NEC) uses described in 1.4 1.8. In a multiple-conductor cable that is other than submersible-pump cable and does not have a grounding conductor it is appropriate to have one circuit conductor without insulation. It is also appropriate for a sunmersibe pump cable to have a grounding conductor and for Type USE and USE-2 cables to have an insulated grounding conductor. Each insulated conductor in these cables is rated for 600V. Type USE cable has thermose insulation, except for HDPE portion of HDPE-over-XLPE insulation where used for single-conductor Type USE cable. Type USE cable has thermoset or thermoplatic insulation.

2. Construction

Type SE cable is constructed with sunlight resistant Type XHHW-2 conductor or Type THW conductors. Copper conductors are annealed (soft) copper. Cable assembly plus reinforcement tape are jacketed with sunlight resistant thermoset or thermoplastic material, available as 1 conductor with a concetric ground, 2 conductor with a round and flat or concentric round, or 3 conductor with a bare ground. SE cable is jacketed with gray sunlight resistant thermoset or thermoplastic material.



3. Type

Single core type round with full neutral entrance cable

Single core type round with less neutral entrance cable

Single core type round with full neutral and communication cores entrance cable

Two core type Flat with full neutral entrance cable

Two core type round with full neutral entrance cable
Three core type round with full neutral and communication cores entrance cable
Three core type round with less neutral entrance cable



4.Drawing



Company Information

Hongliang Cable Co., Ltd.

Established Year: 1988
Registered capital of RMB:180,000,000
Total assets : 28.7millions
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 450

 Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.



Our Services







Concentric cable packing



FAQ



Frequently Asked Question

1. Which payment terms do you accept?

a.The payment term varies with different price level and total rate of each contract.

    The following are most common terms:

b. 30% T/T down payment, the balance before you picking up the  goods.

c. 100% L/C at sight.

d. 30% T/T down payment, the balance against 100% L/C at sight.

2.  What is your MOQ?

    You are advised to please confirm it with us directly as it’s based on different cable type.

    Usually it’s 100 meters for Medium Voltage Cables.

3. What about the lead time for our cable product ?

    The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.

4. What about our product's package ?

    our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
