ACSR 400/51 Overhead bare conductor 50mm aluminium cable

FOB Reference Price:Get Latest Price
$1.00 - $50.00 / Meter | 500 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 10 Negotiable
Customization:
Graphic customization (Min. Order: 500 Meters)
Customized packaging (Min. Order: 500 Meters)

More

Customized logo (Min. Order: 500 Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong
Model Number:
ACR wire, ACSR 400/51
Insulation Material:
Bare
Type:
no voltage limit, no voltage limit
Application:
Overhead, Power Station,Overhead
Conductor Material:
aluminum, Aluminum wire and steel wire
Jacket:
NO
stock:
in stock
Standard:
GOST 839-80
Temperature:
90 degree
Sample:
free
provider:
factory
Brand:
huadong
Supply Ability
Supply Ability:
150 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
GOST 839-80 ACSR 400/51 Overhead bare conductor uninsulated Aluminum conductors steel reinforced factory price
: 1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request
Port
Qingddao
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 10 To be negotiated
Video Description

ACSR 400/51 Overhead bare conductor 50mm aluminium cable



Product Description



Construction :

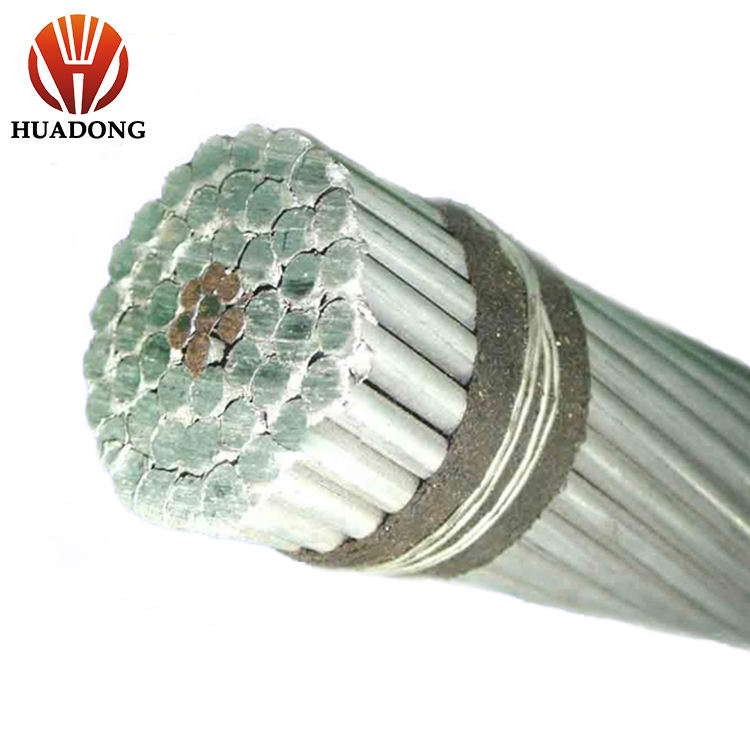

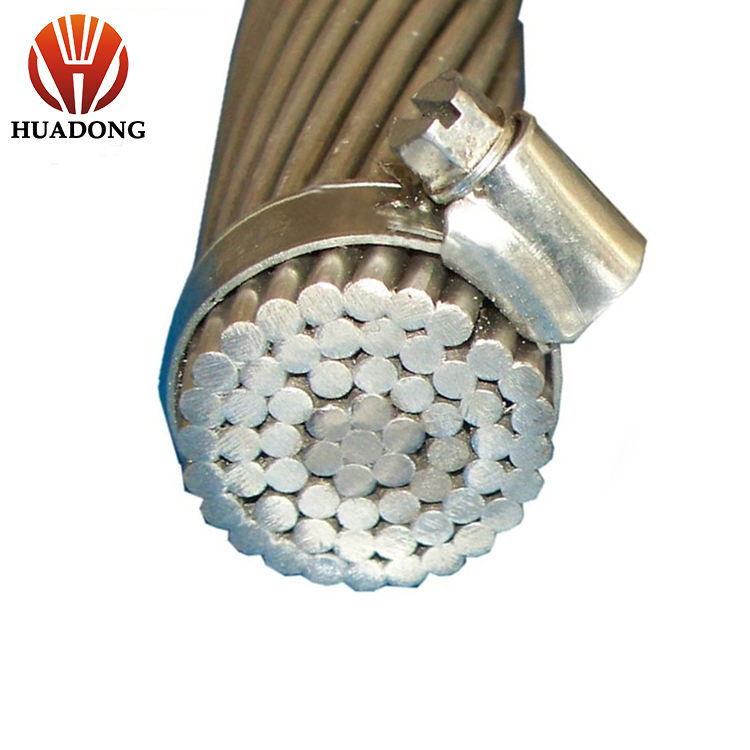

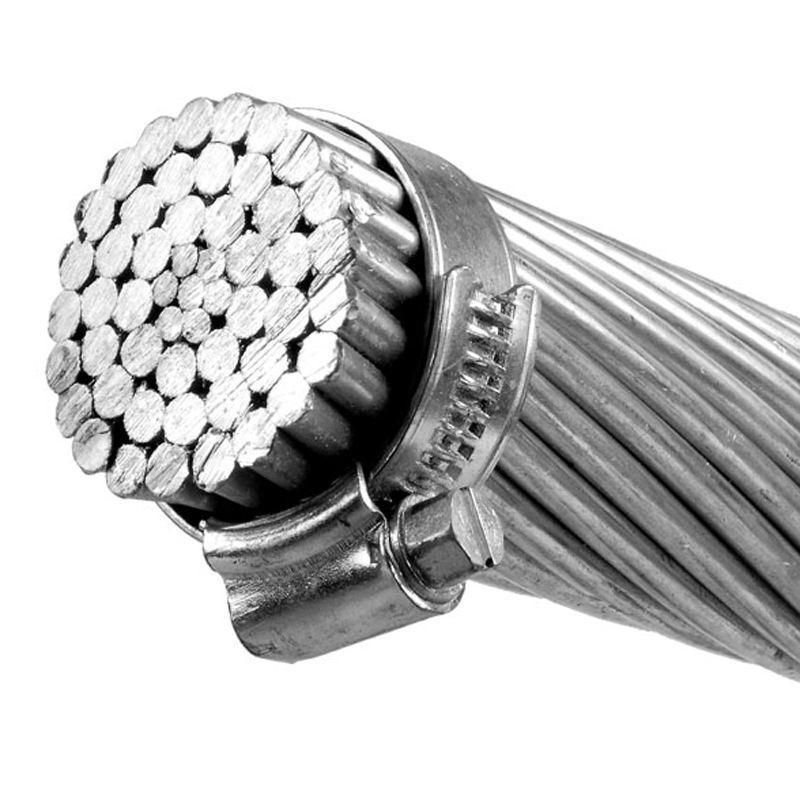

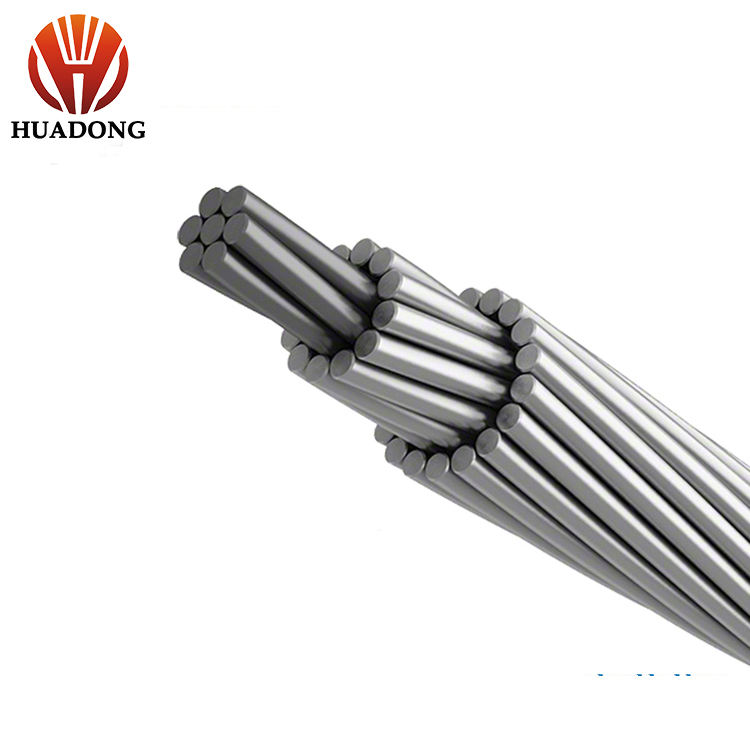

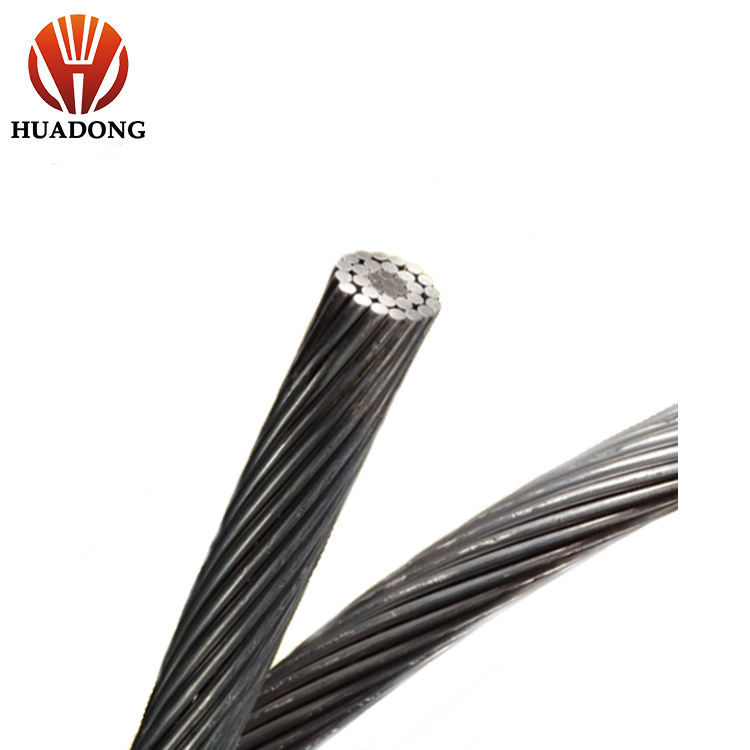

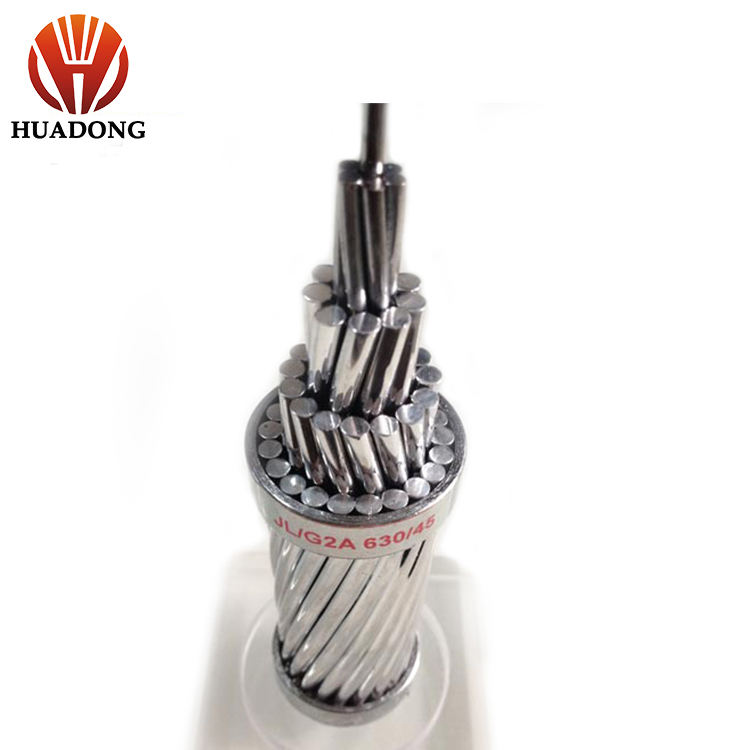

ACSR conductor are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease. By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached.



Standard:

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110, and customers’ special specifications also can be satisfied.



ACSR Technical characteristics / BS215

Code name Nominal aluminum area mm2 Stranding structure Sectional area of aluminum Total sectional area Overall diameter   Calculated breaking load Calculate D.C resistance at 20℃ Current Rating
Total
Al. No. Al. Dia. St. No. St. Dia mm2 mm2 mm kg/km daN Ω/km A
Mole 10 1.50  1.50  10.62  12.39  4.50  43 414 2.7060  67
Squirrel 20 2.11  2.11  20.94  24.43  6.33  85 788 1.3680  109
Gopher 25 2.36  2.36  26.24  30.62  7.08  106 961 1.0930  126
Weasel 30 2.59  2.59  31.61  36.88  7.77  128 1146 0.9077  134
Fox 35 2.79  2.79  36.66  42.77  8.37  149 1320 0.7822  147
Ferret 40 3.00  3.00  42.41  49.48  9.00  172 1520 0.6766  161
Rabbit 50 3.35  3.35  52.88  61.70  10.05  214 1835 0.5426  185
Mink 60 3.66  3.66  63.18  73.71  10.98  255 2180 0.4545  174
Skunk 60 12  2.59  2.59  63.27  100.30  12.95  465 5300 0.4567  246
Beaver 70 3.99  3.99  74.82  87.29  11.97  302 2570 0.3825  193
Horse 70 12  2.79  2.79  73.37  116.20  13.95  538 6120 0.3936  268
Racoon 75 4.10  4.10  79.20  92.40  12.30  320 2720 0.3622  231
Otter 80 4.22  4.22  83.88  97.86  13.98  339 2880 0.3419  240
Cat 90 4.50  4.50  95.40  111.30  15.90  386 3270 0.3007  248
Hare 100 4.72  4.72  105.00  122.50  17.50  425 3600 0.2733  273
Dog 100 4.72  1.57  105.00  118.50  14.15  394 3270 0.2733  278
Hyena 100 4.39  1.93  105.80  126.20  14.57  450 4090 0.2712
Leopard 125 5.28  1.75  131.30  148.10  15.81  492 4070 0.2184
Coyote 125 26  2.54  1.91  132.10  152.20  15.89  522 4640 0.2187  311
Congar 125 18  3.05  3.05  130.30  137.50  15.25  419 2980 0.2189  314
Tiger 125 30  2.36  2.36  131.10  161.70  16.52  602 5800 0.2202  323
Dingo 150 18  3.35  3.35  158.70  167.50  16.75  506 3570 0.1815  349
Wolf 150 30  2.59  2.59  158.10  194.90  18.13  726 6920 0.1828  355
Caracal 175 18  3.61  3.61  184.30  194.50  18.05  587 4110 0.1563  383
Lynx 175 30  2.79  2.79  183.40  326.20  19.53  842 7980 0.1576  386
Jaguar 200 18  3.86  3.86  210.60  222.30  19.30  671 4655 0.1367  415
Panther 200 30  3.00  3.00  212.10  261.50  21.00  974 9225 0.1363  421
Lion 225 30  3.18  3.18  238.50  294.20  22.26  1095 10060 0.1212  448
Bear 250 30  3.35  3.35  264.00  325.60  23.45  1213 11110 0.1093  481
Goat 300 30  3.71  3.71  324.30  400.00  25.97  1489 13570 0.0891  542
Sheep 350 30  3.99  3.99  374.10  461.40  27.93  1718 15590 0.0770  592
Antilope 350 54  2.97  2.97  373.10  421.50  26.73  1411 11820 0.0773  588
Bizon 350 54  3.00  3.00  381.80  431.30  27.00  1444 12090 0.0757  595
Deer 400 30  4.27  4.27  429.30  529.50  28.89  1971 17850 0.0674  639
Zebra 400 54  3.18  3.18  428.90  484.50  28.62  1621 13190 0.0674  635
ELK 450 30  4.50  4.50  477.00  588.30  31.50  2190 19820 0.0606  679
Camel 450 54  3.35  3.35  475.20  536.80  30.15  1777 14570 0.0607  677
Moose 500 54  3.53  3.53  528.70  597.20  31.77  1999 16110 0.0547  763
Finch 500 54  3.65  19  2.29  564.70  642.90  33.35  2243 18070 0.0512  815







Notes:

Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions. Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq.ft sun, 0.5 coefficients of emissivity and absorption.
