solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper

FOB Reference Price:Get Latest Price
$0.10 - $5.00 / Meters | 200 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Huadong
Model Number:
cables and wires copper
Type:
Insulated
Application:
home wire
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
PVC
1sample:
free
2.name:
cables and wires copper
7.Certificate:
CCC CQC ISO BV
3.Model Number:
BV BLV RBV RVV RVS RV
4.Voltage:
300/500V 450/750V
5.Insulation:
PVC
6.Color:
Black /Red or as your requirement
8.Conductor:
Copper or Aluminum
9.Number of cores:
1core ,2 cores ,3 cores ,as your request
10.Standard:
IEC 60227
Supply Ability
Supply Ability:
50000 Kilometer/Kilometers per Month cables and wires copper
Packaging & Delivery
Packaging Details
solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper be packing details:
by Roll/ 100meters per roll, or as your request.
Port
Qingdao /Tianjin/Shanghai / Guangzhou for Multi conductor ABC cable

solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper.

Product Description

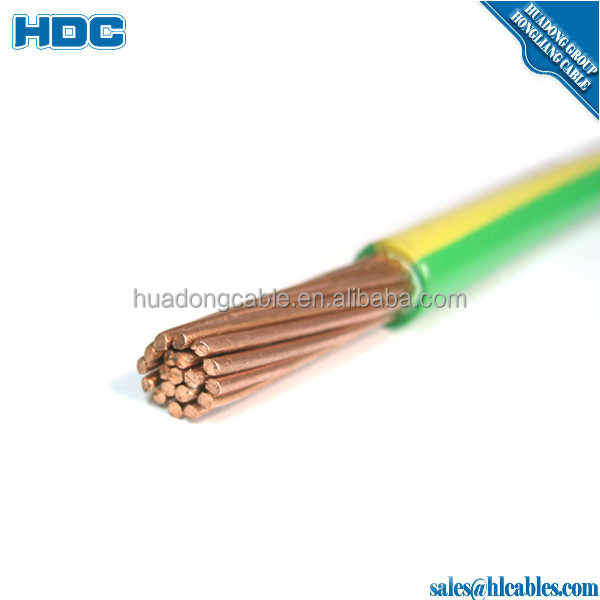

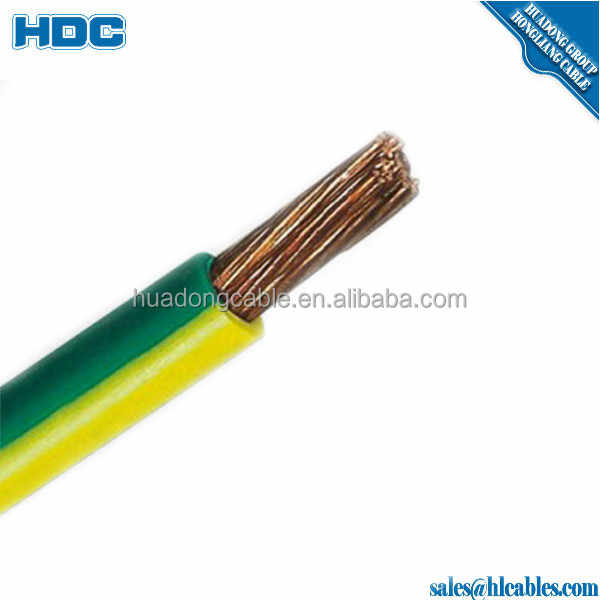

 item name: solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper.

the products can be used for power,lighting or telecommunication equipment,household electric appliance,meter and instrument,etc.



A. Uo/U is 450/750 and 300/500.



B. Long time working temperature of or below 70°C is required for all cables or wires,except Model No BV-90 that can stand temperature up to 90°C.



C. Temperature should be above 0°C when laying the cables or wires.





Nominal section

(mm2)

Number/diameter of core

(mm)

Maximum outer diameter

(mm2)

Reference weight

(Kg/km)

Conductor resistance at 20°C

≤(Ω/km)

copper

aluminum

aluminum

copper

1.5(A)

1/1.38

3.3

20.3

-----

-----

12.1

1.5(B)

7/0.52

3.5

21.6

-----

-----

12.1

2.5(A)

1/1.78

3.9

31.6

17

11.80

7.41

2.5(B)

7/0.68

4.2

34.8

-----

-----

7.41

4(A)

1/2.25

4.4

47.1

22

7.39

4.61

4(B)

7/0.85

4.8

50.3

------

-----

4.61

6(A)

1/2.76

4.9

65

29

4.91

3.08

6(B)

7/1.04

5.4

71.2

----

----

3.08

10

7/1.35

7.0

119

62

3.08

1.83

16

7/1.70

8.0

179

78

1.91

1.15

25

7/2.04

10.0

281

118

1.20

0.727

35

7/2.52

11.5

381

156

0.868

0.524

50

19/1.78

13.0

521

215

0.641

0.387

70

19/2.14

15.0

734

282

0.443

0.268

95

19/2.52

17.5

962

385

0.320

0.193











Packaging & Shipping

solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper.

1,wooden drum, Iron wooden drum or as your request
. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
2, the long & wide & high of 40 size container:11.9*2.32*2.72



Our Services

solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper.
Large production capacity, short delivery.

Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!





Company Information

  Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,

and domestic& internationatrade.

Established year: 2005

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km .



flat electrical cable Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.

flat electrical cable Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the

Transformation of Urban and Rural Power Grid Construction.











FAQ

 1.what is our payment term ?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.

solid copper conductor PVC insulated Flexible electric cables and wires cable copper wire 2.5mm cables and wires copper.
