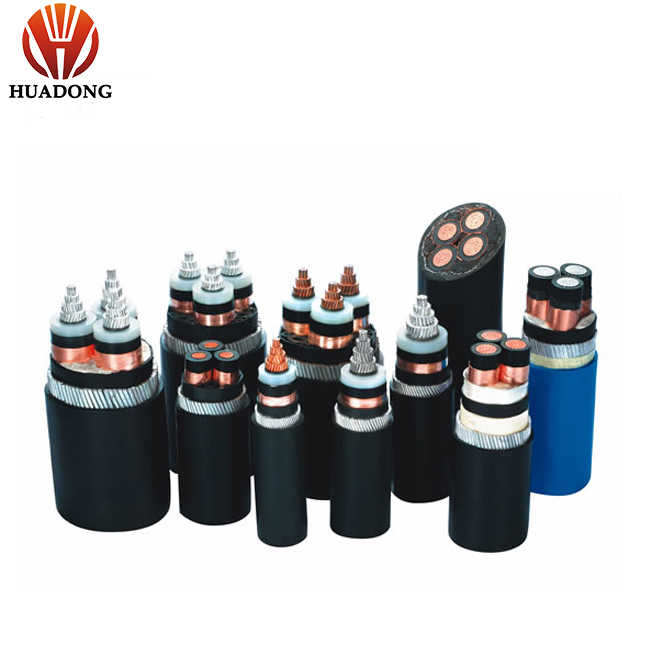

11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable

FOB Reference Price:Get Latest Price
$0.50 - $88.00 / Meters | 200 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Huadong Cable
Model Number:
Power cable
Insulation Material:
XLPE
Type:
Medium Voltage
Application:
Underground, Industrial/underground Aluminum conductor cable
Conductor Material:
Aluminum
Jacket:
PVC XLPE
Standard:
BS standard
item name:
11KV 3*300mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable
Construction:
Phase conductor-concentic strand etc.
Main products:
Power Cable,ABC Cable,Control Cable,AAC/AAAC/ACSR,Welding Cable
Working voltage:
0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35kv
Color:
black, red or as your request
No. of Cores:
1, 3, core 185mm2
Armored:
SWA/STA armoured power cable
Voltage:
Medium voltage power cable
Supply Ability
Supply Ability:
500000 Meter/Meters per Month for XLPE Armoured Copper Power Cable.
Packaging & Delivery
Packaging Details
11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable packed in
Within 2 weeks after confirming the order BV Cable
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
Port
Qingdao,Tianjing,Shanghai,Guangzhou.

11KV 3*300mm2 240mm2 185mm2 150mm2 XLPE Armoured Copper Power Cable

Product Description



Specifications

 1.xlpe insulated swa armour power cables

2.excellent electrical,mechanical
3.heat-resistant & anti-aging
4.25 years producing experience.

5.copper conductor

6.Voltage: Under 35KV



11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable

Specifications



1. Uo/U: 450/750V, 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
2. Standard applied: IEC, GB, BS, VDE, AS/NZS or as per requirement
3. Working temperature: 70~125 °C
4. Conductor: solid or stranded pure annealed copper or aluminum
5. Insulation: XLPE or PVC or PE or LSZH
6. Cores: 1~5 cores, 3+1 cores, 3+2 cores, 4+1 cores for low voltage, 1 core or 3 cores for MV power cable
7. Cross section area: 1.0~630 sqmm for single core, 1.0~300 sqmm for multicores
8. Armoure: armore type is optional, SWA (steel wire armored) or STA (steel tape armored) for multicores, AWA (aluminum wire armored) or ATA (aluminum tape armored) for single core
9. Sheath: PVC or PE or Low smoking and halogen free compounding, etc.
10. Color: black or as per requirement
11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available
12. Wooden drum package or as per request
13. OEM can be available
15. BDK cables have very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and 5-star service.







11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable

Specifications

Brief Introduction
PVC/XLPE power cable is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.



11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable


Standard
The products can be produced according to our factory specification which is equivalent to the standard IEC60502.The factory can also design and manufacture special power cable according to the other standards required by the customers.



11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable

Specifications:
Properties of PVC Power Cable
1.The long-time permissible working temperature of cable conductive core is not more than 70 degrees.
2.During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.


Properties of XLPE Power Cable

1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.Can stand advisable traction when laid.Can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.



Type Name



Application

 Cu

Conductor

Al

Conductor

YJV

YJY

 YJLV

YJLV

XLPE Insulated,PVC or PE S heathed Power CableFor laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid.

YJV22

YJV23

 YJLV22

YJLV23

XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable

For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force.

YJV32

YJV33

 YJLV32

YJLV33

XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable

For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force.

YJV42

YJV43

YJLV42

YJLV43

XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable
Able to bear positive pressure and pulling force



U0/Um(kv)



No.of Core

1st class

0.6/1

1.8/3

3.6/6

6/10

8.7/15

12/20

18/30

21/35

2nd class

1/1

3/3

6/6

8.7/10

12/15

18/20

-

26/35

1 Core

Section

area(mm2)

1.5-800

25-800

25-800

25-800

35-800

50-800

50-800

50-800

2 Core

Section

Area(mm2)

1.5-185

/

 /

 /

 /

 /

 /

 /

3 Core

Section

area(mm2)

1.5-400

25-400

25-400

25-400

35-400

50-400

50-400

50-400

4 Core

Section

Area(mm2)

2.5-400

25-400

 /

 /

/

/

/

/

5 Core

Section

area(mm2)

2.5-400

25-400

/

/

/

  /

/

/



11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable

1 low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.





2.2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable





2.3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.



Packaging & Shipping

11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable packaging:

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request

Our Services

11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable.

1.Advanced connectors & assembly cables machines and testing equipments.
2.Large production capacity, short delivery.
3.Strict QC checking before delivery.
4.OEM/ODM service available, help you on designing.
5.Prompt quotation for your inquiry.
6.More than 10 years experiences in cable and wire field.
7.Professional connector and cable manufacturer, with good quality and competitive price.
8.free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!



Company Information

11KV 3*300mm2 240mm2 185mm2 150mm2 High Voltage XLPE Armoured Copper Power Cable.

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,

and domestic& international trade.

Established year: 2005

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km

XLPE Armoured Copper Power Cable Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

FAQ

1.what is our payment term?

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days after confirm the contract.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.
